Bitzer Air-Cooled Box-type Condensing Unit (-20~-15℃)

Bitzer Air-Cooled Box-type Condensing Unit (-20~-15℃)

With -20~-15 ℃ working temperature, and automatic ON and OFF function, this Bitzer Air-Cooled Box-type Condensing Unit stands first in the market.

Product Description

With -20~-15 ℃ working temperature, and automatic ON and OFF function, this Bitzer Air-Cooled Box-type Condensing Unit stands first in the market. It comes with optional integrated electrical parts to meet customers’ demands. Featuring controllable fans, inquiry function, and failure alarm system, this piston condensing unit is an economic investment for all coming years. As it works at low temperatures, so it ensures protection in extreme conditions like exhaust temperature, over current, phase loss, and sudden compressor starting to maintain workflow.


Moreover, we always manufacture and test all Bitzer Air-Cooled Box-type Condensing Unit parts carefully to maintain OEM-QUALITY standards.


Key Features:

· Storage temperature: -20~-15 ℃

· Power supply: 380V/3P/50Hz

· Evaporation temperature: -23℃

· Environment temperature: 35℃

· Inhale overheat: 10℃

· Control panel for icy room temperature and standard control panel (optional).

· Automatic ON and OFF function.

· Automatic control function for defrosting.

· Multi-protection guaranteed (high low-pressure protection, oil presser protection, compressor module protection, temperature and over current protection).

· Fans speed is controllable according to the changing temperature settings.

· Buzzer alarm in case of any failure while working.

· Easy to install and operate the control panel.

· Control panel displays alarm function, working status, and all temperature settings.


Main Components:

· Semi-hermetic Compressor

· Crankcase heater

· Anti-vibration Pipe

· Condenser

· Liquid Accumulator

· Filter

· Pressure Controller

· High Pressure Gauge

· Low Pressure Gauge

· Terminal Box

· Sight Glasses


This Bitzer Air-Cooled Box-type Condensing Unit with all measurements and parts is compatible with R404A refrigerant. Please contact us if you need a condensing unit for other refrigerants.

Product Features

TypeXJB

04LBY05LBY06LBY09LBY12LBY
Compressor type4EES-4Y4DES-5Y4CES-6Y4TES-9Y4PES-12Y
Cooling capacity and powerEvaporation -20℃Cooling capacity(W)6.477.739.2711.4812.81
Power(W)4.365.166.17.348.03
Evaporation -23℃Cooling capacity(W)5.526.587.889.710.74
Power(W)4.054.795.666.747.34
Evaporation -25℃Cooling capacity(W)4.945.97.048.629.5
Power(W)3.844.555.366.356.88
Storage temperature( ℃)-20~-15 ℃
RefrigerantR404A
Power suppler380V/3P/50Hz
CondenserQuantity of fan11122
Voltage of fan (V)380380380380380
Power of fan (W)330330330230×2230×2
Portinhale port/(mm)φ28φ28φ28Φ35Φ35
Liquid supply port(mm)φ12φ12φ12φ16φ16
Boundary dimensionsL (mm)99099099015001500
W (mm)753753753854903
H (mm)857857857867875
Installation dimension (A×B)(mm)950×530950×530950×5301460×6301460×680


Unit design condition: evaporation temperature -23℃,environment temperature 35℃, inhale overheat 10℃. CIC spray system must be added if evaporation temperature is lower than -25℃


TypeXJB

14LBY18LBY23LBY28LBY34LBY
Compressor type4NES-14Y4HE-18Y4GE-23Y6HE-28Y6GE-34Y
Cooling capacity and powerEvaporation -20℃Cooling capacity(W)15.5921.825.632.138.3
Power(W)9.9213.6616.2420.224.6
Evaporation -23℃Cooling capacity(W)13.1618.6321.927.432.9
Power(W)9.1112.6715.0618.6822.9
Evaporation -25℃Cooling capacity(W)11.716.6919.6724.629.7
Power(W)8.581214.2717.6921.8
Storage temperature( ℃)-20~-15 ℃
RefrigerantR404A
Power suppler380V/3P/50Hz
CondenserQuantity of fan22233
Voltage of fan (V)380380380380380
Power of fan (W)450×2600×2780×2780×3780×2
Portinhale port/(mm)φ35Φ42Φ54Φ54Φ54
Liquid supply port(mm)φ16Φ22φ22φ22φ22
Boundary dimensionsL (mm)15001606188020702270
W (mm)9531003960960960
H (mm)8671004177017701860
Installation dimension (A×B)(mm)1460×7301566×7801350×9001670×9001740×900


Unit design condition: evaporation temperature -23℃,environment temperature 35℃,inhale overheat 10℃. CIC spray system must be added if evaporation temperature is lower than -25℃


Installation dimensions:

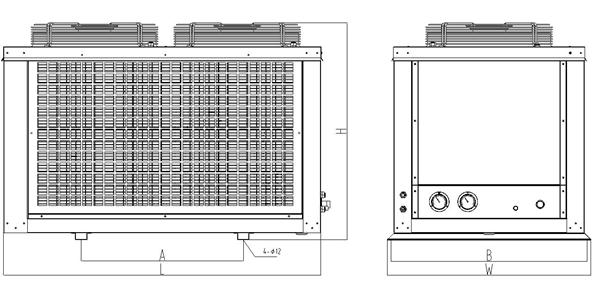

XJB03MB(Y)-XJB07MB(Y), XJB03LB(Y)-XJB06LB(Y):


Bitzer Air-Cooled Box-type Condensing Unit (-20~-15℃)

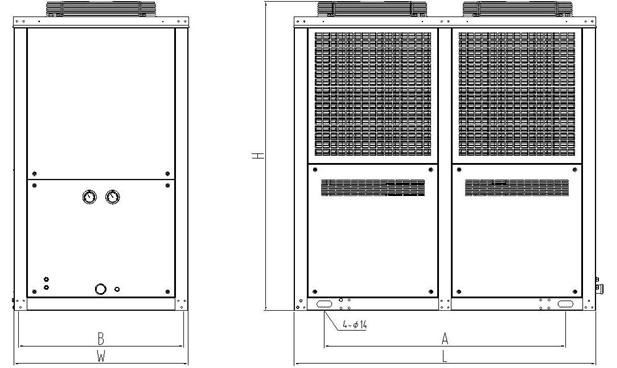

XJB10MB(Y)-XJB50MB(Y)、XJB08LB(Y)-XJB40LB(Y):


Bitzer Air-Cooled Box-type Condensing Unit (-20~-15℃)
