Medicine Cold Storage

Medicine Cold Storage

For medicines with quality not preservable under room temperature conditions, refrigerating them at low temperature will retain their quality, keep them effective and extend their shelf life. The sheet material of the medicine cold storage uses modern high-tech flame-retardant insulation materials which has excellent airtightness. Kendall's medicine cold storage follows design norms and is energy-saving and environmentally friendly.


Medicine Cold Storage Types

Vaccine Storage: At 0℃~8℃, it can be used to store vaccines, medicines, etc.

Medicine Storage: At 2℃~8℃, it can be used to store medicine, biological products, etc.

Blood Storage: At 5℃~1℃, it can be used to store blood, pharmaceutical and biological products, etc.

Low-temperature-maintaining Storage: At -20℃~-30℃, it can store blood plasma, biological materials, vaccines, reagents, etc.

Ultra-low-temperature-maintaining Storage: At -30℃~-80℃, it can be used to store placenta, semen, stem cells, blood plasma, bone marrow, biological samples, etc.


Features and Advantages of Installing Kendall's Medicine Cold Storage

1. The medicine cold storage designed and installed by Kendall has many advantages such as storage, quick-freezing, fast fresh-keeping refrigeration, complete functions, energy-saving, etc. and uses the most advanced low-noise evaporative fans to ensure that the lowest energy consumption of the main unit achieves the highest efficiency.

2. For the refrigeration control system, we use fully automated microcomputer electrical control technology that does not require manual operation to monitor and record the temperature and humidity in the storage area. It has intelligent computer temperature control and a temperature and humidity recorder (with alarm device) within the high-precision temperature sensor. The temperature in the warehouse can be set freely within a range of +2℃~+8℃. The fully automated temperature stabilizer and automatic power switch, both of which do not require manual operation, as well as the digital temperature display, ensure the safe storage of goods inside the warehouse. It can also meet long-term monitoring requirements while being used. If it detects that the temperature or humidity has reached the upper or lower limit, the device will light and sound the alarm.

3. The cold storage is equipped with two units to ensure that when the unit commonly used stops working during a breakdown, the operation of the standby unit will not affect medicines, vaccines and related products inside the warehouse.

4. The refrigeration equipment uses imported components and high-quality materials, which are strictly inspected before leaving the factory. It is low-noise, energy-saving and operationally reliable.

5. The control system uses a fully intelligent microcomputer with automatic detection. The high-precision sensor recorder (with alarm device) has an SMS alarm function, monitors and records the temperature and humidity in the storage area and is capable of meeting long-term monitoring requirements. If it detects that the temperature or humidity has reached the set upper or lower limit, the device will light and sound the alarm.

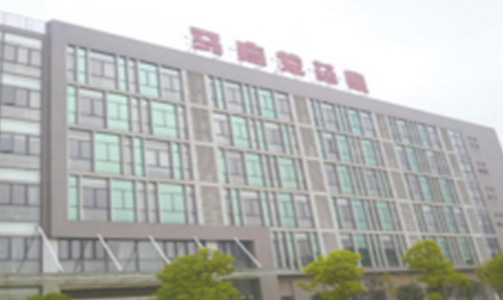

Mayinglong Pharmaceutical High-temperature Medicine Cold Storage

Cold Storage Size: 6,000 square meters

Unit Selection: Danfoss Single-head Compressor, Danfoss Two-parallel Air-cooled Unit


Introduction to the Cold Storage Project: This project involved the purchase and installation of refrigeration equipment in the storage area of the large pharmacy building of Mayinglong Pharmaceutical Group Co., Ltd. The project included the design and construction of refrigeration equipment and control system work based on the owner's technical requirements as well as provision of necessary maintenance and other services.


The project's main unit uses the French brand "Danfoss" with the first stage using a 22HP single-head compressor, second stage using a 32HP two-parallel air-cooled unit, third stage using a 25HP two-parallel air-cooled unit and fourth stage using a 25HP three-parallel air-cooled unit. Considering that the refrigeration area does not have a stand-alone machine room, all units were designed as a monolithic structure, that is, the compressor and condenser were designed as two-in-one and can be installed outdoors without the need to consider a rain shed separately. The evaporator is a locally-produced, highly-efficient, single-sided-blower, high-temperature air cooler, which meets the requirements of medicine cool storages and room-temperature storages.

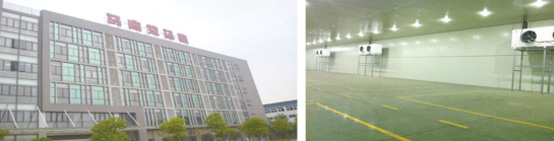

Mayinglong Pharmaceutical High-temperature Medicine Cold Storage

Mayinglong Pharmaceutical High-temperature Medicine Cold Storage

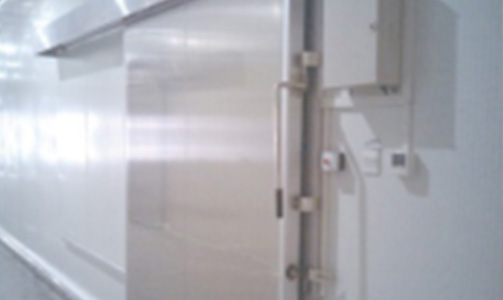

Taizhou Hisun Pharmaceutical Large Medicine Cold Storage Project

Cold Storage Size: 1,500 square meters

Unit Selection: Bitzer Stainless-steel-box-type Air-cooled Unit Parallel Connection


Introduction to the Cold Storage: The large medicine cold storage with total area of 1,500 square meters of Taizhou Hisun Pharmaceutical was constructed by the company. It was constructed in two phases with the front 1,000 square meters housing 4 units of 15P German Bitzer stainless-steel-box-type air-cooled unit parallel connection equipped with 4 coolers and a touch-screen electric control box to monitor the temperature of the cold storage. It also has an SMS alarm which monitors the entire cold storage situation.


Taizhou Hisun Pharmaceutical Large Medicine Cold Storage Project

Taizhou Hisun Pharmaceutical Large Medicine Cold Storage Project

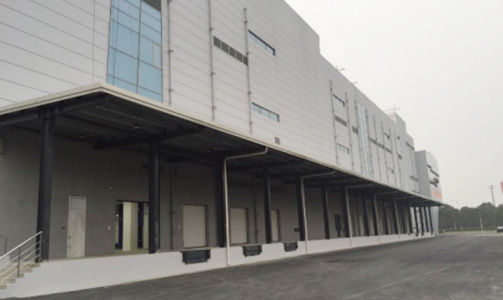

China Resources Suzhou Li'an Pharmaceutical Co., Ltd. Logistics Center Medical Cold Storage Project

Cold Storage Size: 10,000 square meters

Unit Selection: Sick Dual-outlet Air Cooler, Bitzer Piston Unit



Introduction to the Cold Storage: The cold storage has an area of about 10,000 cubic meters with four refrigerated storages (2℃~5℃), one freezer storage (-18℃~-23℃) and one breezeway (2℃~5℃). The cold storage uses U.S. Sick double-outlet air cooler, Bitzer piston unit, stainless-steel electric doors and other advanced technology equipment while all components use Schneider. It is mainly used to store all kinds of imported medicines, etc. The cold storage project has very high requirements for the cold storage design, engineering and construction quality. Kendall Refrigeration incorporated actual land conditions to the construction based on the owner's request and after 2 months of construction, it was able to satisfy all requirements of the owner through rich technical experience and professional construction standards.


China Resources Suzhou Li'an Pharmaceutical Co., Ltd. Logistics Center Medical Cold Storage Project
