Bitzer Semi-Hermetic Open-type Condensing Unit (-10~5℃)

Featuring water-cooled condenser (aluminum fin and copper tube) and highly efficient air-cooled condenser (shell-type), this condensing unit stands tall with long life and over-heat protection.

Inquire Now Next Product

Product Description

Featuring water-cooled condenser (aluminum fin and copper tube) and highly efficient air-cooled condenser (shell-type), this condensing unit stands tall with long life and over-heat protection. It also has a robust structure and compact design to work in an extensive range of uses for cold storages at low temperatures. And this Semi-Hermetic Open-type Bitzer Condensing Unit with eco-design works well with low-GWP air-cooled refrigerants. Additional specs include; high-class fan technology, heat exchange mechanisms, good appearance, high efficiency, and less noise. Moreover, waterproof junctions of Bitzer condensing units are quite easy to connect with all control components to save time.

We always provide series of products for the solution of cold storage, water-chilling and ice-making with the best quality to maintain OEM-QUALITY standards.

Features:

· Power supply: 380V/3P/50HZ

· Storage temperature: -10～5 ℃

· Refrigerant: R404A

· Air cooling condenser made up of aluminum fin and copper tube

· Water cooling condenser

· Semi hermetic compressor

· High efficiency

· Easy to connect water proof junctions

· Low noise

· Less power consumption

· Stable operation

· Evaporation temperature -10℃,

· Environment temperature 35℃

· Inhale overheat: 10℃

Main Components:

· Compressor

· Crankcase heater

· Anti-vibration Pipe

· Condenser, Reservoir

· Oil separator

· Filter

· Pressure controller

· High-low pressure gauge

· Sight glass

· Oil pressure controller

· Junction box

This Bitzer Semi-Hermetic Open-type Condensing Unit with all the parts and measurements is compatible with R404A refrigerant. Please contact us if you need a condensing units for other refrigerants.

Product Features

Type				JZBF
				02MBY	03MBY	03MBY	03MBY	04MBY	05MBY
Compressor type				2GES-2Y	2FES-3Y	2EES-3Y	2DES-3Y	2CES-4Y	4FES-5Y
Cooling capacity and power	Evaporation -5℃		Cooling capacity(KW)	4.06	4.99	6.49	7.77	9.59	10.39
	Evaporation -5℃		Power(KW)	1.94	2.39	2.74	3.31	4.07	4.38
	Evaporation -10℃		Cooling capacity(KW)	3.24	3.99	5.18	6.22	7.7	8.3
	Evaporation -10℃		Power(KW)	1.81	2.22	2.53	3.05	3.77	4.09
	Evaporation -15℃		Cooling capacity(KW)	2.55	3.13	4.07	4.9	6.1	6.55
	Evaporation -15℃		Power(KW)	1.66	2.03	2.31	2.78	3.44	3.76
Storage temperature( ℃)				-10～5 ℃
Refrigerant				R404A
Power supply				380V/3P/50Hz
Condenser		Quantity of fan		1	2	2	2	2	2
		Voltage of fan (V)		380	380	380	380	380	380
		Power of fan (W)		120×1	90×2	120×2	120×2	120×2	120×2
Port		inhale port/(mm)		φ16	φ16	φ22	φ22	φ22	φ22
Port		Liquid supply port(mm)		φ10	φ10	φ12	φ12	φ12	φ12
Boundary dimensions			A (mm)	620	960	960	960	960	960
			B (mm)	650	680	680	680	680	750
			C (mm)	560	510	560	560	560	670
Installation dimension (A×B)(mm)				580×350	920×380	920×380	920×380	920×380	920×410

Unit design condition: evaporation temperature -10℃,environment temperature 35℃,inhale overheat 10℃

Type				JZBF
				06MBY	07MBY	09MBY	12MBY	15MBY	20MBY
Compressor type				4EES-6Y	4DES-7Y	4CES-9Y	4TES-12Y	4PES-15Y	4NES-20Y
Cooling capacity and power	Evaporation -5℃		Cooling capacity(KW)	13.06	15.8	19.15	24.2	27.5	33
	Evaporation -5℃		Power(KW)	5.54	6.62	8.13	9.86	11.17	13.32
	Evaporation -10℃		Cooling capacity(KW)	10.4	12.61	15.25	19.12	21.6	26.1
	Evaporation -10℃		Power(KW)	5.14	6.16	7.51	9.02	10.17	12.2
	Evaporation -15℃		Cooling capacity(KW)	8.18	9.95	11.98	14.91	16.74	20.4
	Evaporation -15℃		Power(KW)	4.7	5.64	6.82	8.13	9.09	11
Storage temperature( ℃)				-10～5 ℃
Refrigerant				R404A
Power supply				380V/3P/50Hz
Condenser		Quantity of fan		2	4	4	4	4	4
		Voltage of fan (V)		380	380	380	380	380	380
		Power of fan (W)		120×2	120×4	120×2	120×2	250×4	450×4
Port		inhale port/(mm)		φ28	φ28	φ28	Φ35	Φ42	φ42
Port		Liquid supply port(mm)		φ12	φ16	φ16	Φ22	φ22	φ22
Boundary dimensions			A (mm)	1300	1300	1280	1300	1300	1700
			B (mm)	750	750	710	710	750	800
			C (mm)	770	960	1150	1270	1270	1270
Installation dimension (A×B)(mm)				1260×410	1260×410	1000×665	1000×665	1000×705	1000×755

Unit design condition: evaporation temperature -10℃,environment temperature 35℃,inhale overheat 10℃

Type				JZBF
				25MBY	30MBY	35MBY	40MBY	50MBY
Compressor type				4HE-25Y	4GE-30Y	6HE-35Y	6GE-40Y	6FE-50Y
Cooling capacity and power	Evaporation -5℃		Cooling capacity(KW)	43.5	49.9	63.9	72.6	88.4
	Evaporation -5℃		Power(KW)	17.59	20.3	26.1	30.3	37.5
	Evaporation -10℃		Cooling capacity(KW)	34.8	39.9	51.1	58.2	71.1
	Evaporation -10℃		Power(KW)	16.19	18.71	24.2	28	24.6
	Evaporation -15℃		Cooling capacity(KW)	27.4	31.6	40.3	46.2	56.5
	Evaporation -15℃		Power(KW)	14.7	16.99	22	25.6	31.5
Storage temperature( ℃)				-10～5 ℃
Refrigerant				R404A
Power suppler				380V/3P/50Hz
Condenser		Quantity of fan		2	3	3	4	4
		Voltage of fan (V)		380	380	380	380	380
		Power of fan (W)		800×2	780×3	800×3	780×4	800×4
port		inhale port/(mm)		φ54	φ54	φ54	φ54	φ54
port		Liquid supply port(mm)		φ22	φ22	φ28	φ28	φ28
Unit dimensions			A (mm)	1150	1150	1050	1050	1600
			B (mm)	570	570	600	600	610
			C (mm)	860	852	910	910	880
Installation dimensions (a×b)				800×525	800×525	800×525	800×555	1000×600
Condenser dimensions			A (mm)	1950	2720	2600	2000	2360
			B (mm)	1100	965	965	2000	2000
			C (mm)	1124	1020	1020	1124	1020

Unit design condition: evaporation temperature -10℃, environment temperature 35℃,inhale overheat 10℃

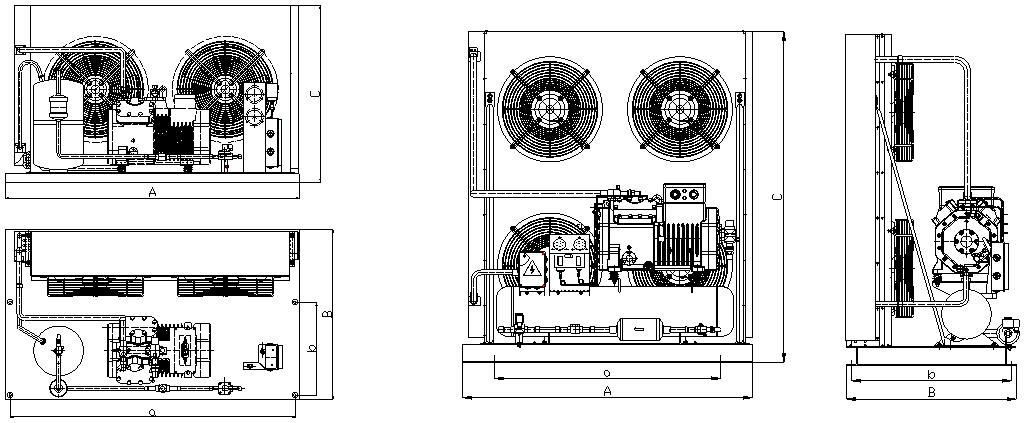

Figures of air cooling units:

JZBF02M(Y)～JZBF07M(Y) JZBF09M(Y)～JZBF20M(Y)

JZBF01L(Y)～JZBF06L(Y) JZBF08L(Y)～JZBF25L(Y)
