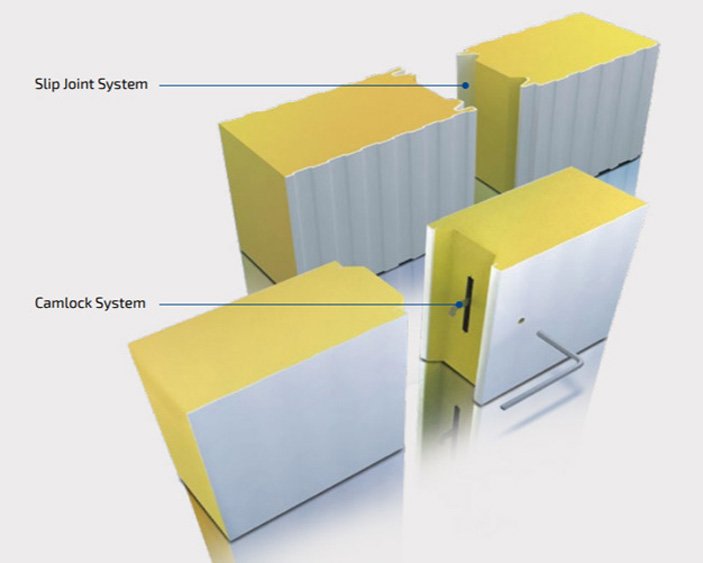

Insulated panels form the walls and ceilings of a cold room, creating a sealed enclosure that helps maintain the required internal temperature. Their insulation performance, joint structure and installation quality directly affect heat transfer, air leakage and the operating load of the refrigeration system.

Kendall supplies insulated cold room panels for refrigerated rooms, freezer rooms and other temperature-controlled facilities. Panel thicknesses include 50mm, 75mm, 100mm, 150mm and 200mm. The appropriate specification is selected according to the required storage temperature, ambient conditions, room dimensions and insulation requirements.

Available exterior cladding materials include:

• Polyester-coated galvanized steel

• PVC-coated galvanized steel

• Stainless steel

• Aluminum

Other cladding materials can also be considered according to project requirements. Panel surfaces are available in smooth or ribbed finishes to match different construction and application needs.

Cold Room Panel Selection

Below is the panel thickness level that is required for each temperature;

The panel thickness should be determined by the required storage temperature, outdoor temperature, cold room size, door-opening frequency and stored product load. Panel joints and connections also need to be properly sealed to reduce thermal leakage.

For complete panel specifications and product options, Kendall also supplies Cold Room Panels for different cold storage construction requirements.

Depending on your requirements, we also supply and develop panels with other cladding materials. We also ensure that the surface of the insulated panels is smooth or ribbed depending on the customer’s specifications.

Going forward, another feature you will enjoy when you high us is the inclusion of hygienic features in terms of food processing, storage, and distribution facilities. Kendall can design and build any type of insulated panel for your deep freezing, refrigerating, shock frosting, and so on.

Cold room doors provide access to refrigerated storage areas while helping maintain internal temperature and reduce cold air loss. Door selection depends on the storage temperature, opening dimensions, traffic frequency, handling equipment and sealing requirements.

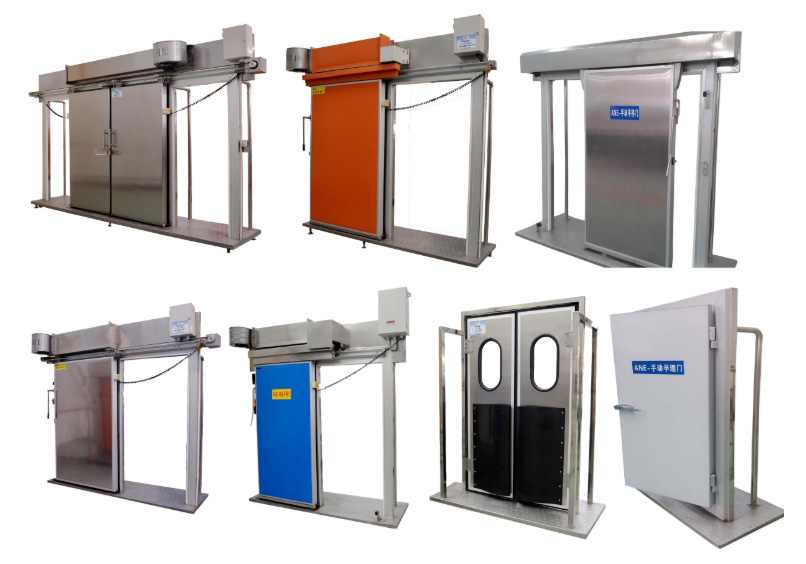

Kendall supplies different cold room doors for commercial and industrial applications, including:

• Hinged Doors – Single-leaf and double-leaf options for standard cold room entrances and smaller storage facilities.

• Sliding Doors – Manual or electric sliding designs for larger openings and areas where swing clearance is limited.

• Swing and Traffic Doors – Suitable for frequent movement between processing areas and temperature-controlled rooms.

• High-Speed Curtain Doors – Designed for openings with frequent vehicle or personnel traffic, helping reduce the time that a cold room remains open.

• Hydraulic and Automatic Doors – Door configurations for facilities requiring automated access.

• Controlled Atmosphere Doors – Designed for controlled-atmosphere storage applications.

• Display Thermal Glass Doors – Used in refrigerated display and commercial storage applications.

• Insulated Sectional Doors – Suitable for selected cold storage and industrial access requirements.

• Fire-Resistant Metal Doors – Available for projects requiring designated fire-resistant door configurations.

Cold Room Door Features

Kendall's cold room door options incorporate polyurethane insulation and sealing structures to support thermal performance and stable operation.

Key features include:

• Thermal insulation to reduce heat transfer through door openings.

• Sealing systems to limit cold air leakage and moisture exchange.

• Flexible door dimensions for different wall openings.

• Manual and automatic opening configurations.

• Suitable locking mechanisms and hardware for different operating conditions.

• Durable door structures for repeated opening and closing.

Hinged doors can be configured with different opening directions and single- or double-leaf structures. Sliding doors are suitable for larger access openings and warehouse applications where space-efficient operation is important.

Each cold room door is selected according to the room temperature, opening dimensions, traffic conditions and installation structure. Kendall also supplies Cold Room Doors for different cold storage and industrial applications.

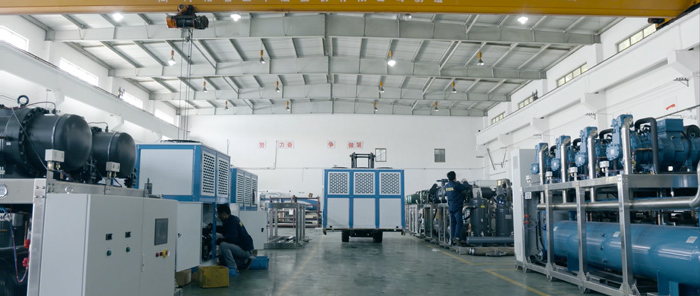

The refrigeration system is the core operating component of a cold room. It removes heat from the storage space and maintains the required temperature for stored products. A complete cold room refrigeration system typically includes a condensing unit, evaporator, refrigerant piping, expansion components and temperature control devices.

Kendall provides refrigeration systems for commercial and industrial cold rooms, with different equipment configurations for refrigerated storage and low-temperature applications.

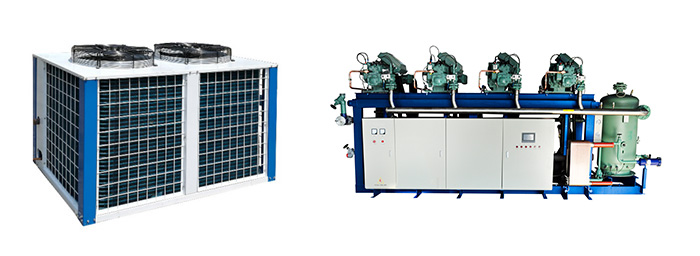

Condensing Units

Kendall supplies air-cooled and water-cooled condensing units with different compressor configurations, including:

• Semi-hermetic condensing units

• Hermetic condensing units

• Scroll condensing units

• Piston condensing units

• Screw condensing units

• Two-stage condensing units

Depending on the selected model, condensing units feature efficient heat exchange, corrosion-resistant construction, aluminum fins, grooved copper tubes and integrated control and safety devices. Weather-protective canopies are also available on the equipment configurations described in Kendall's product specifications.

Selected refrigeration configurations incorporate Bitzer and Danfoss technologies to support different cooling requirements.

Related equipment:

• Air Cooled Condensing Units

• Water Cooled Condensing Units

• Water Chillers

Evaporators

Evaporators absorb heat from the air inside the cold room and distribute cooled air throughout the storage space. Their airflow, installation position and defrost configuration affect cooling performance and temperature distribution.

Kendall supplies compact evaporating units with features that include:

• Stainless steel bodies for corrosion resistance.

• Grooved copper tubes for heat transfer.

• Built-in defrost heaters for applicable low-temperature models.

• Low-noise fans for refrigerated storage environments.

• Removable side panels for installation and maintenance access.

• Customized configurations according to cold room dimensions and operating requirements.

Refrigeration System Configuration

The refrigeration equipment is selected according to the cold room's internal dimensions, target temperature, insulation specification, outdoor conditions, stored product load and frequency of door opening.

The condensing unit and evaporator need to be properly matched to the required cooling load. Refrigerant piping, defrost arrangements and temperature controls are also considered during system configuration.

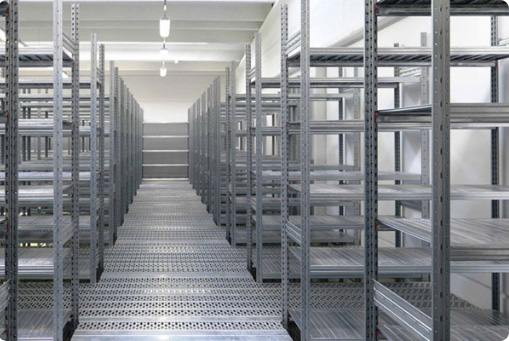

Cold room shelving and racking systems provide organized storage for products, cartons, pallets and other materials. A suitable racking layout helps make better use of available storage space and supports efficient loading, unloading and inventory handling.

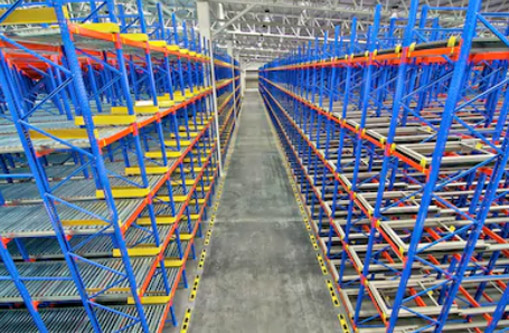

Kendall supplies and installs different cold room racking systems, including:

• Pallet Racking Systems

• Drive-in Racking Systems

• Mobile Racking Systems

• Customized Storage Racking Systems

The racking structures can be manufactured using high-tensile, hot-dip galvanized steel to provide structural strength and corrosion resistance in cold storage environments.

We produce racking systems that are of high quality and also EU certified. We construct racking systems with high tensile hot-dipped galvanized steel to provide extreme power. The weight of shelving systems has bolted construction and the weight is between 7.5 to 15 tons.

Customized Racking Configurations

Kendall customizes racking frames, beams, heights and storage layouts according to the dimensions and operational requirements of each cold room.

The main configuration considerations include:

• Storage Capacity – Racking structure and beam specifications are selected according to the weight and dimensions of stored goods.

• Storage Height – Frame height and shelf levels are arranged according to the available cold room height.

• Forklift Access – Aisle width and racking layout are planned around forklift movement and loading operations.

• Corrosion Protection – Galvanized steel structures are available for cold storage environments.

• Equipment Protection – Column guards can be installed to help protect racking frames from forklift impact.

Kendall also provides racking layout and installation support to coordinate the storage system with the cold room dimensions, access points and handling requirements.

The frames produced by our firm are prime quality, certified and hot-dipped galvanized steel. The strength and height of the shelving racking system usually depend on the requirement of our customers. The beams are customized to meet individual requirements. To ensure that the durability of the beam, the thickness quadruple flange thickness. We also make use of channels at the top of the beams to support the bars and drums so that you can store specific goods. To maximize your space, the beams would be installed at an interval of 50 mm.

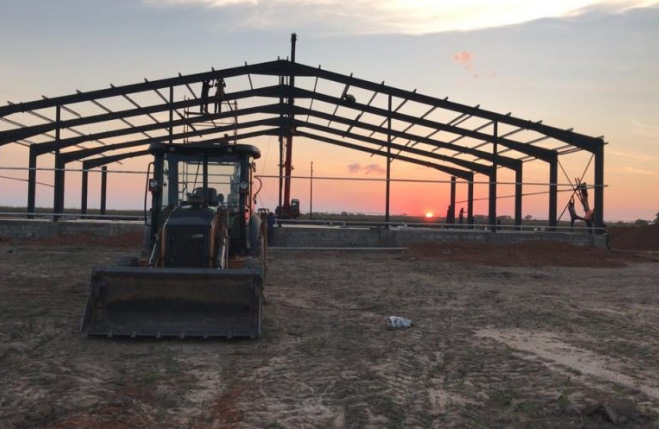

Structural steel components provide support for warehouse buildings, industrial facilities and selected cold storage construction projects. They help form the supporting framework for insulated panels, roofs and other building components.

Kendall provides structural steel design, supply and installation services for warehouses and factories. For cold room projects requiring supporting steel structures, the structural configuration can be coordinated with the insulated enclosure and overall building layout.

Structural Design Considerations

The steel structure is designed according to project dimensions, site conditions and structural requirements.

Key considerations include:

• Structural Load – The weight of the structure and supported building components.

• Wind Load – Local wind conditions and the required structural resistance.

• Spacing and Dimensions – Column positions, beam spans and overall structure layout.

• Steel Plate Thickness – Material dimensions selected according to structural requirements.

• Surface Protection – Protective coatings and galvanization to improve resistance to humidity and outdoor exposure.

Kendall can also coordinate insulated panel installation with supporting steel frames and roof drainage components. Gutters can be incorporated into the building design to collect rainwater and reduce water splashing around the structure.

The final steel structure configuration is determined according to the building layout, installation conditions and project requirements.

To guarantee the durability of the steel, they are coated and galvanized with steel beams. All these measurements are taken to ensure that they cope with the humidity and harsh weather condition.

We also supply insulating panels with an iron structure that has a high-quality thermal coefficient. Gutters are also incorporated in our designs to collect rain and reduce splashing.

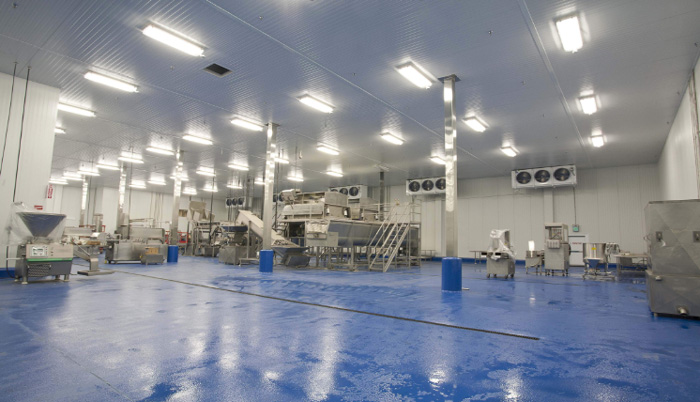

Cold room flooring needs to support stored goods, handling equipment and daily operating activities while maintaining the insulation performance of the storage enclosure.

Kendall provides different cold room flooring configurations for refrigerated storage facilities, including prefabricated insulated floors and concrete floor structures. The appropriate construction depends on the cold room temperature, floor loading, traffic conditions and building foundation.

Prefabricated Cold Room Floors

Prefabricated floors are suitable for cold room projects requiring integrated floor insulation and surface protection.

Available construction details include:

• Marine plywood reinforcement.

• 1.6mm aluminum chequer plate surface.

• 3mm steel chequer plate surface.

• Galvanized sheet components for specified floor configurations.

The surface material is selected according to the required floor strength, handling equipment and operating conditions.

Concrete Cold Room Floors

Concrete floors are suitable for cold storage facilities requiring a durable floor structure and appropriate insulation below the concrete slab.

Typical construction considerations include:

• Flush-entry floor arrangements to facilitate equipment and goods movement.

• Foam slab insulation beneath the concrete floor.

• A recessed base of approximately 160–170mm for the specified insulation and concrete construction.

• A 250-micron plastic vapor barrier with approximately 400mm overlapping joints.

• Proper sealing at wall-to-floor connections to reduce moisture penetration and air leakage.

Customized Floor Design

Cold room flooring should be coordinated with the room's insulation system, structural foundation and expected loading conditions. Forklift traffic, pallet movement, floor moisture and operating temperature all affect the final floor specification.

Kendall can coordinate floor insulation and surface configurations with the overall cold room construction plan.

Frost heaving can occur beneath large or low-temperature cold rooms when moisture in the soil below the floor freezes and expands. Over time, this expansion may cause floor movement, cracking or damage to the insulated floor structure.

A suitable cold room frost protection system helps reduce the risk of frost formation beneath the floor and protects the long-term performance of the cold storage facility.

Kendall considers two frost protection methods for applicable cold room projects:

1. Subfloor Ventilation Pipe System

A ventilation pipe system is installed beneath the cold room floor. The pipes are arranged to allow air circulation below the insulated floor structure.

Both ends of the pipes are left open to support airflow. This circulation helps prevent excessive frost accumulation beneath the floor.

This method is considered during the floor design stage, particularly for large cold rooms where sufficient space is available for underground pipe installation.

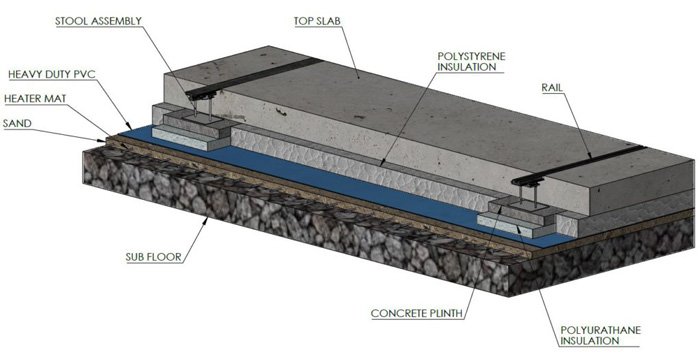

2. Electric Floor Heating Mats

Electric floor heating mats provide heat beneath the cold room floor to help prevent frost formation.

This option can be considered when the site does not have sufficient space for a subfloor ventilation pipe system.

Frost Protection System Selection

The appropriate frost protection method depends on the cold room operating temperature, floor structure, soil conditions, building layout and available installation space.

Kendall coordinates the frost protection arrangement with the floor insulation and cold room construction design to help protect the floor structure during long-term refrigeration operation.

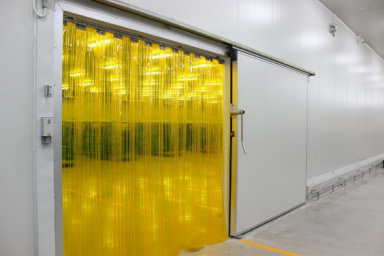

PVC strip curtains are used at cold room entrances, warehouse openings and other high-traffic access points. They help reduce the exchange of warm and cold air when doors are opened, supporting more stable internal temperatures and reducing unnecessary cooling loss.

Kendall supplies PVC strip curtains for cold rooms and industrial facilities in different widths, colors and configurations.

PVC Curtain Features

• Temperature Separation – Helps reduce warm air entering refrigerated areas during loading and unloading.

• Dust and Splash Protection – Provides a flexible barrier against dust, water splashes and other external contaminants.

• Noise Reduction – Helps reduce noise transmission between connected working areas.

• Flexible Access – Allows personnel and handling equipment to pass through without repeatedly opening a solid door.

• Reduced Heat Exchange – Can be installed behind sectional doors to provide an additional barrier against temperature exchange.

• Durable Strip Edges – Ball-edged strip designs help reduce tearing during repeated use.

Available PVC Strip Specifications

PVC strips are available in clear or translucent colors, including red, black and blue.

The strip width, thickness, overlap and mounting arrangement should be selected according to the opening dimensions, traffic frequency and operating environment.

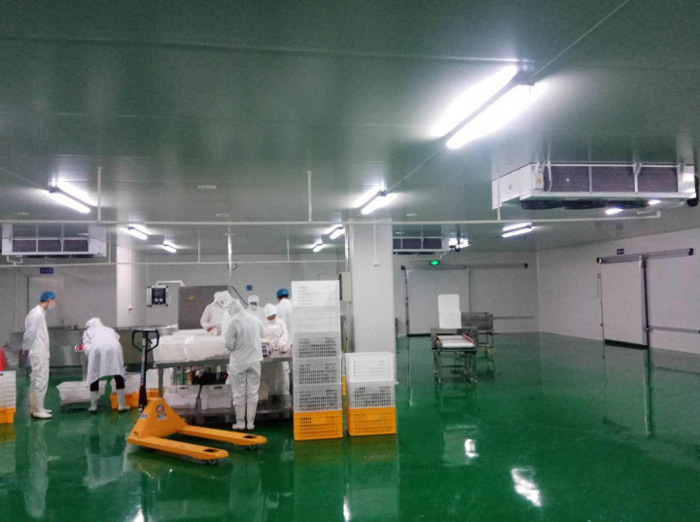

Proper lighting is important for cold room storage, product identification, inventory handling and daily warehouse operations. A suitable lighting layout improves visibility around storage racks, access doors and working areas.

Kendall provides lighting design and installation solutions for cold rooms, warehouses, industrial halls and other commercial facilities.

Cold Room Lighting Design

Lighting arrangements are planned according to the dimensions and operating requirements of each facility.

Key considerations include:

• Room Dimensions – Lighting positions and quantities are arranged according to the cold room area and ceiling height.

• Storage Layout – Fixture placement considers shelving positions, aisles and product storage locations.

• Working Areas – Loading, unloading, inspection and handling areas require suitable illumination.

• Operating Environment – Lighting fixtures should be selected according to the cold room temperature, humidity and cleaning conditions.

• Installation Position – Ceiling and wall-mounted arrangements are considered according to the room structure and available installation space.

LED lighting can be incorporated into the cold room configuration according to project requirements. The fixture specification and electrical protection level should be confirmed for the actual operating environment.

Kendall coordinates lighting installation with the cold room layout to provide practical illumination for storage and daily operations.

Cold room accessories include the fittings, connection components, sealing materials and control devices required for cold room construction and refrigeration system installation.

Kendall supplies different cold room accessories to support panel installation, refrigeration connections, temperature control and daily facility operation.

Refrigeration Piping and Valves

These components connect and regulate the refrigeration system.

Available accessories include:

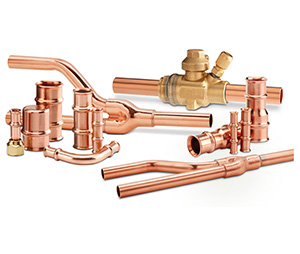

• Copper Pipes and Connections

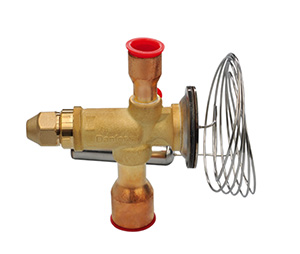

• Expansion Valves

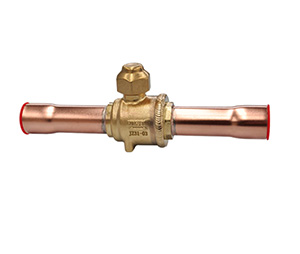

• Stop Valves

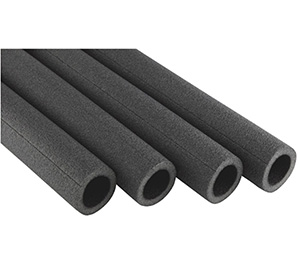

• Thermal Insulation Pipes

Temperature Control and Electrical Accessories

These components support cold room operation and temperature management.

Available accessories include:

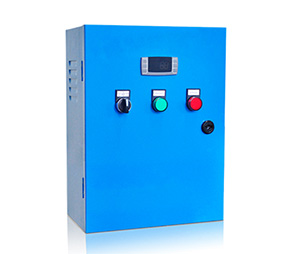

• Temperature Controllers

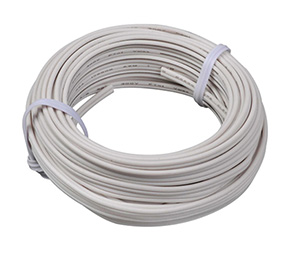

• Electrical Wires and Connections

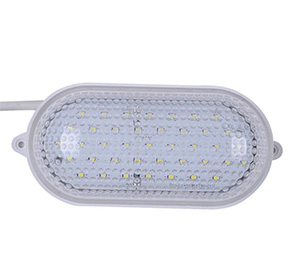

• LED Lighting Fixtures

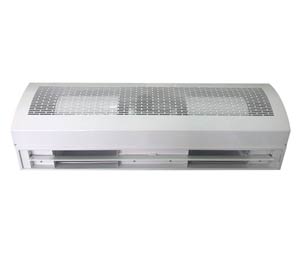

• Air Curtains

Panel Installation and Sealing Accessories

These accessories support insulated panel assembly, roof installation and joint protection.

Available accessories include:

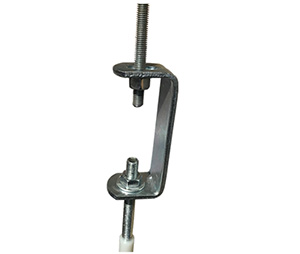

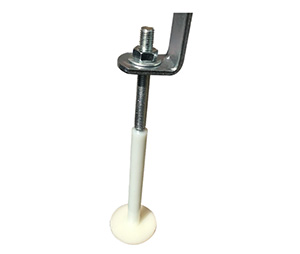

• Roof Installation Fittings

• Roof Installation Screws

• Adhesives and Sealants

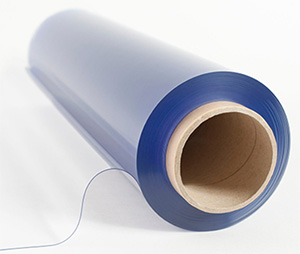

• Waterproof PVC Sheets

• Fire-rated Silicone Sealants

Protection and Access Accessories

Additional components help protect the cold room structure and facilitate daily operations.

These include:

• Wall and Door Bumpers

• Internal and External Ramps

• Rounded or Curved Internal Corners

Rounded corners help cover exposed joints and fixing points, creating a cleaner interior surface and supporting easier sanitation. Bumpers help protect panels and doors from impact during material handling, while ramps facilitate the movement of goods and equipment across floor-level differences.

The accessory configuration is coordinated with the cold room panels, door structure, refrigeration piping and installation layout to ensure that the components are suitable for the overall project.

Air Curtain	Copper Pipe&Connection	Expansion Valve	Glue
LED Lighting	Roof Installation Fitting	Roof Installation Screw	Stop Valve
Temperature Controller	Thermal Insulation Pipe	Water Proof PVC Sheet	Wires for The Cold Room
