Air-cooled Piston Condensing Units

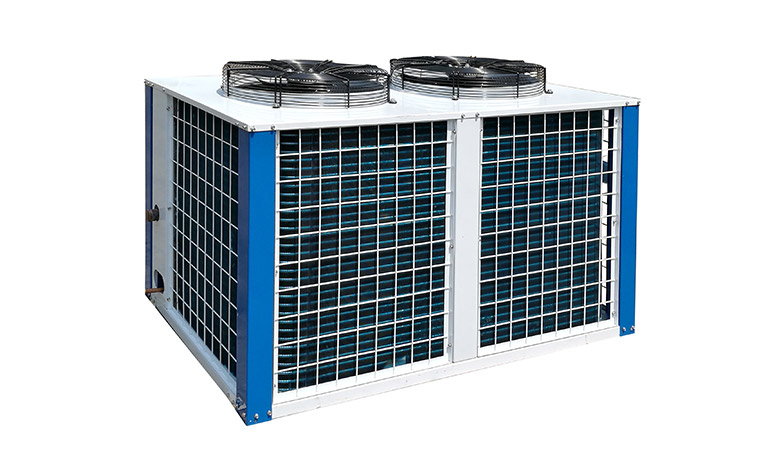

Bitzer Air-Cooled Low Temperature Piston Condensing Unit (-10~5℃)

Bitzer Air-Cooled Low Temperature Piston Condensing Unit (-10~5℃)

Bitzer Air-Cooled low temperature Piston Compressor Unit has surpassed the other units due to its multiform protection with adaptable fan speed. In accession to this, a caution siren for any catastrophes or bugs accompanying probe function.

Product Description

Bitzer Air-Cooled low temperature Piston Compressor Unit has surpassed the other units due to its multiform protection with adaptable fan speed. In accession to this, a caution siren for any catastrophes or bugs accompanying probe function. Besides, its inhale overheat is of the order 10 ⁰C with storage temperature moving between -10~5 ⁰C.


We invariably assemble and examine all Bitzer Air-Cooled Piston Compressor Unit components discreetly to sustain OEM-QUALITY insignia.


Features:

· It includes a semi-hermetic compressor that holds its principal electrical parts such as control panel and cold room temperature united.

· Its compressor is programmed that is it governs itself.

· It supplies optimal functioning and high competence.

· It is implemented with a central control panel that switches on and off depending on system presser.

· Users can effortlessly alter fan pace depending upon the conditions.

· It is moderately simple to fit and fix.

· Evaporation Temperature: -10

· Environmental Temperature: 35℃

· Power supply: 380V/3P/50Hz


Main Components:

· Compressor

· Crankcase Heater

· Condenser

· Reservoir

· Liquid Accumulator

· Filter

· Anti-vibration pipe

· Terminal Box

· Sight Glass

· Pressure gauge

· Pressure controller


This Bitzer Air-Cooled Piston Compressor Unit with all measurements and parts is compatible with R22 refrigerant. Please contact us if you need a condensing unit for other refrigerants.

Product Features

TypeXJB

03MB04MB05MB06MB07MB09MB
Compressor type2DES-32CES-44FES-54EES-64DES-74CES-9
Cooling capacity and powerEvaporation -5℃Cooling capacity(W)7.859.6610.313.115.6619.29
Power(W)2.973.653.834.95.87.22
Evaporation -10℃Cooling capacity(W)6.337.828.2710.5412.6315.61
Power(W)2.763.43.564.545.46.72
Evaporation -15℃Cooling capacity(W)5.046.256.548.3610.0412.46
Power(W)2.533.123.254.144.946.16
Storage temperature( ℃)-10~5℃
RefrigerantR22
Power supply380V/3P/50Hz
CondenserQuantity of fan111222
Voltage of fan (V)380380380380380380
Power of fan (W)330330330160×2160×2230×2
Portinhale port/(mm)φ22φ22φ22φ22φ28φ28
Liquid supply port(mm)φ12φ12φ12φ12φ12φ12
Boundary dimensionsL (mm)990990990124012401500
W (mm)753753753803803903
H (mm)857857857852852875
Installation dimension (A×B)(mm)950×530950×530950×5301200×5801200×5801460×680


Unit design condition: evaporation temperature -10℃,environment temperature 35℃,inhale overheat 10℃


TypeXJB

12MB15MB20MB25MB30MB
Compressor type4TES-124PES-154NES-204HE-254GE-30
Cooling capacity and powerEvaporation -5℃Cooling capacity(W)25.228.83445.452.6
Power(W)8.8310.0511.8115.8618.28
Evaporation -10℃Cooling capacity(W)20.22327.236.442.4
Power(W)8.159.2310.8814.6616.93
Evaporation -15℃Cooling capacity(W)15.9217.9921.428.833.6
Power(W)7.398.329.8613.3315.44
Storage temperature( ℃)-10~5 ℃
RefrigerantR22
Power supply380V/3P/50Hz
CondenserQuantity of fan22233
Voltage of fan (V)380380380380380
Powe of fan (W)450×2600×2780×2780×3800×2
Portinhale port/(mm)Φ35Φ42Φ42Φ54φ54
Liquid supply port(mm)φ16Φ22φ22φ22φ22
Boundary dimensionsL (mm)15001606170420702460
W (mm)95310031053960960
H (mm)8671004110817701867
Installation dimension (A×B)(mm)1460×7301556×7801664×8301670×9001950×900


Unit design condition: evaporation temperature -7℃, environment temperature 35℃, inhale overheat 10℃


Installation dimensions:

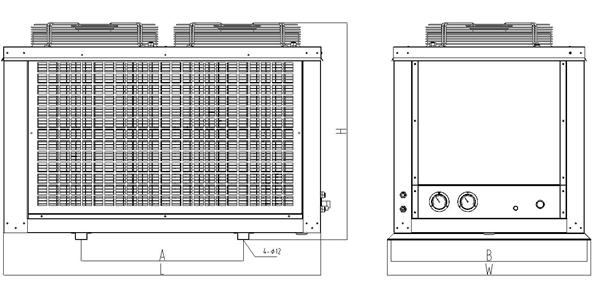

XJB03MB(Y)-XJB07MB(Y)、XJB03LB(Y)-XJB06LB(Y):


Bitzer Air-Cooled Low Temperature Piston Condensing Unit (-10~5℃)

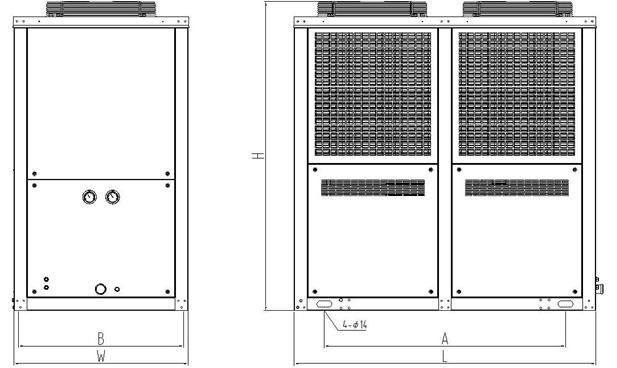

XJB10MB(Y)-XJB50MB(Y)、XJB08LB(Y)-XJB40LB(Y):


Bitzer Air-Cooled Low Temperature Piston Condensing Unit (-10~5℃)
