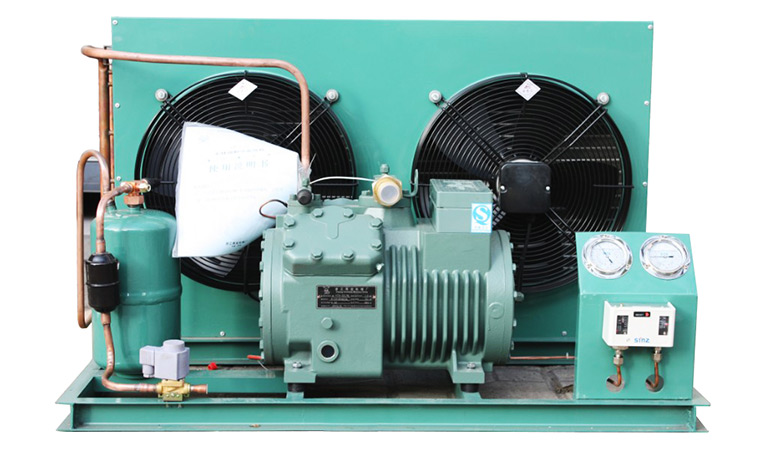

Bitzer Air-Cooled Semi-Hermetic Condensing Unit (-20~-15℃)

As a specialized condensing unit manufacturer, we are offering a wide range of products for water chilling, ice-making, cold storage, and freshness preservation.

Inquire Now Next Product

Product Description

As a specialized condensing unit manufacturer, we are offering a wide range of products for water chilling, ice-making, cold storage, and freshness preservation. Our high-quality Bitzer Air-Cooled Semi-Hermetic Condensing Unit features Bitzer semi-hermetic piston compressor for stable operation. With water-cooled condenser (aluminum fin and copper tube) and highly efficient air-cooled condenser (shell-type), this condensing unit stands alone with long life and over-heat protection. An outer rotor condenser is fortified with an air cooling condenser for good appearance, high efficiency, and less noise. Moreover, waterproof junctions of Bitzer condensing units are quite easy to connect with all control components to save time.

Key features

· Power supply: 380V/3P/50HZ

· Storage temperature: -20～-15 ℃

· Refrigerant: R22

· Air cooling condenser made up of aluminum fin and copper tube

· Water cooling condenser

· Semi hermetic compressor

· High efficiency

· Easy to connect water proof junctions

· Low noise

· Less power consumption

· Stable operation

· Evaporation temperature -23℃,

· Environment temperature 35℃

· Inhale overheat 10℃

Main components

· Compressor

· Crankcase heater

· Anti-vibration Pipe

· Condenser

· Reservoir

· Oil separator

· Filter

· Pressure controller

· Pressure maintaining gauge

· Sight glass

· Oil pressure manager

· Junction box

This Bitzer Air-Cooled Semi-Hermetic Condensing Unit with all the parts and measurements is compatible with R22 refrigerant. Please contact us if you need a condensing units for other refrigerants.

Product Features

Type				JZBF
				02LB	02LB	02LB	03LB	03LB	04LB
Compressor type				2FES-2	2EES-2	2DES-2	2CES-3	4FES-3	4EES-4
Cooling capacity and power	Evaporation -20℃		Cooling capacity(KW)	2.68	3.27	3.94	4.91	5.08	6.51
	Evaporation -20℃		Power(KW)	1.64	1.88	2.3	2.84	2.92	3.73
	Evaporation -23℃		Cooling capacity(KW)	2.3	2.78	3.36	4.21	4.32	5.55
	Evaporation -23℃		Power(KW)	1.53	1.74	2.13	2.64	2.7	3.44
	Evaporation -25℃		Cooling capacity(KW)	2.07	2.48	3.01	3.78	3.85	4.96
	Evaporation -25℃		Power(KW)	1.45	1.64	2.01	2.51	2.54	3.24
Storage temperature( ℃)				-20～-15 ℃
Refrigerant				R22
Power supply				380V/3P/50Hz
Condenser		Quantity of fan		1	1	1	2	2	2
		Voltage of fan (V)		380	380	380	380	380	380
		Powerof fan (W)		120×1	120×1	120×1	120×2	120×2	120×2
Port		inhale port/(mm)		φ16	φ22	φ22	φ22	φ22	φ28
Port		Liquid supply port(mm)		φ10	φ10	φ12	φ12	φ12	φ12
Boundary dimensions			A(mm)	620	620	620	960	960	960
			B(mm)	650	650	650	680	680	680
			C(mm)	560	560	560	560	560	560
Installation dimensions (A×B)(mm)				580×350	580×350	580×350	920×380	920×380	920×380

Unit design condition: evaporation temperature -23℃,environment temperature 35℃,inhale overheat 10℃. CIC spray system must be added when the evaporation temperature is lower than -25℃; Condenser of JZBF-30L and above should be installed separatelyfrom the unit.

Type				JZBF
				05LB	06LB	9LB	12LB	14LB
Compressor type				4DES-5	4CES-6	4TES-9	4PES-12	4NES-14
Cooling capacity and power	Evaporation -20℃		Cooling capacity(KW)	7.85	9.79	12.3	13.78	16.5
	Evaporation -20℃		Power(KW)	4.48	5.55	6.67	7.33	8.89
	Evaporation -23℃		Cooling capacity(KW)	6.71	8.4	10.41	11.58	13.93
	Evaporation -23℃		Power(KW)	4.15	5.17	6.14	6.71	8.17
	Evaporation -25℃		Cooling capacity(KW)	6.01	7.55	9.45	10.97	12.8
	Evaporation -25℃		Power(KW)	3.93	4.91	5.95	6.74	7.88
Storage temperature( ℃)				-20～-15℃
Refrigerant				R22
Power supply				380V/3P/50Hz
Condenser		Quantity of fan		2	2	2	2	4
		Voltage of fan (V)		380	380	380	380	380
		Powerof fan (W)		120×2	120×2	120×4	120×4	120×2
Port		inhale port/(mm)		φ28	φ28	φ35	φ35	Φ35
Port		Liquid supply port(mm)		φ12	φ12	φ16	φ22	φ22
Boundary dimensions			A(mm)	960	960	1280	1280	1300
			B(mm)	680	750	710	710	710
			C(mm)	560	670	1150	1150	1270
Installation dimension (A×B)(mm)				920×380	920×410	1000×665	1000×665	1000×665

Unit design condition: evaporation temperature -23℃,environment temperature 35℃,inhale overheat 10℃. CIC spray system must be added for JZBF-08L unit if evaporationtemperature is lower than -25℃.

Type				JZBF
				18LB	23LB	28LB	34LB	44LB
Compressor type				4HE-18	4GE-23	6HE-28	6GE-34	6FE-44
Cooling capacity and power	Evaporation -20℃		Cooling capacity(KW)	22.1	26.6	34	39.3	47.6
	Evaporation -20℃		Power(KW)	11.78	14.32	18.1	21.1	25.6
	Evaporation -23℃		Cooling capacity(KW)	18.83	22.8	29	33.6	40.8
	Evaporation -23℃		Power(KW)	10.93	13.35	16.84	19.63	23.9
	Evaporation -25℃		Cooling capacity(KW)	16.3	18.91	24.4	28.4	34.2
	Evaporation -25℃		Power(KW)	10.42	12.49	15.61	18.72	22.6
Storage temperature( ℃)				-20～-15℃
Refrigerant				R22
Power supply				380V/3P/50Hz
Condenser		Quantity of fan		4	4	2	3	3
		Voltage of fan (V)		380	380	380	380	380
		Powerof fan (W)		250×4	450×4	800×2	780×3	800×3
port		inhale port/(mm)		Φ42	φ54	φ54	φ54	φ54
port		Liquid supply port(mm)		φ22	φ22	φ22	φ22	φ28
Unit dimensions			A (mm)	1300	1700	1150	1150	1050
			B (mm)	750	800	570	570	600
			C (mm)	1270	1270	860	852	910
Installation dimensions (A×B)				1000×705	1400×755	800×525	800×525	800×555
Condenser dimensions			A (mm)	-----	-----	1950	2720	2600
			B (mm)	-----	-----	1110	965	965
			C (mm)	-----	-----	1124	1020	1020

Unit design condition: evaporation temperature -23℃,environment temperature 35℃,inhale overheat 10℃. CIC spray system must be added if evaporationtemperature is lower than -25℃. Condenser of JZBF-30L and above should be installed separately from the unit.

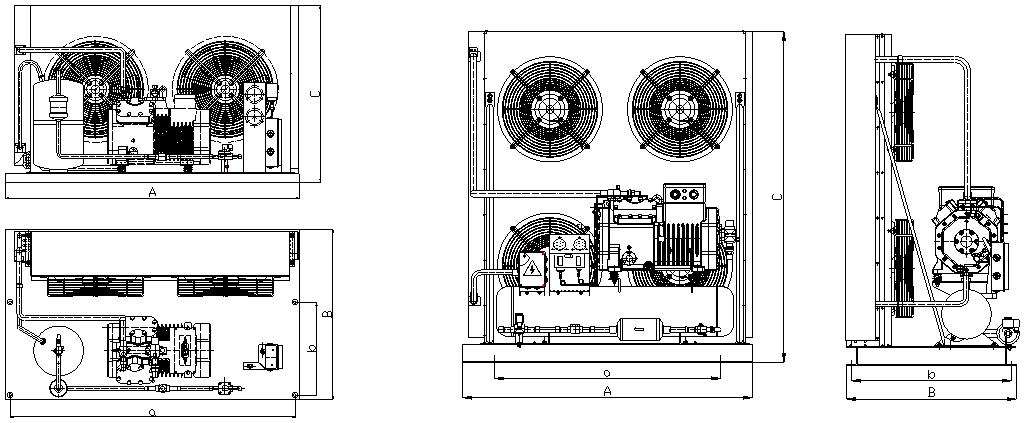

Figures of air cooling units:

JZBF02M(Y)～JZBF07M(Y) JZBF09M(Y)～JZBF20M(Y)

JZBF01L(Y)～JZBF06L(Y) JZBF08L(Y)～JZBF25L(Y)
