Bitzer Water-Cooled Low Temperature Piston Condensing Unit (-20~-15℃)

Our high-quality Bitzer Water-Cooled Open-Type Piston Condensing Unit features Bitzer semi-hermetic piston compressor and -20～-15 ℃ temperature for stable operation.

Inquire Now Next Product

Product Description

Our high-quality Bitzer Water-Cooled Open-Type Piston Condensing Unit features Bitzer semi-hermetic piston compressor and -20～-15 ℃ temperature for stable operation. Perfect for R22, this water cooled condensing unit has water-cooled condenser (aluminum fin and copper tube) and highly efficient air-cooled condenser (shell-type) for long life and over-heat protection. An outside rotor condenser is fortified with an air cooling condenser for good appearance, high efficiency, and less noise. Moreover, waterproof junctions of Bitzer condensing units are quite easy to connect with all control components to save time.

We always provide series of products for the solution of cold storage, water-chilling and ice-making with the best quality to maintain OEM-QUALITY standards.

Key features

· Power supply: 380V/3P/50HZ

· Storage temperature: -20～-15 ℃

· Refrigerant: R22

· Air cooling condenser made up of aluminum fin and copper tube

· Water cooling condenser

· Semi hermetic compressor

· High efficiency

· Easy to connect water proof junctions

· Low noise

· Less power consumption

· Stable operation

· Evaporation temperature -23℃,

· Environment temperature 35℃

· Inhale overheat 10℃

Main components

· Water cooling condenser

· Compressor

· Damping pipe

· Crankcase heater

· Junction box

· Filter

· Pressure controller

· Pressure gauge

Customized options:

We are currently offering the following customizations;

· Single compressor unit

· Two parallel compressor unit

· Three parallel compressor unit

This water-cooled piston condensing unit with all the parts and measurements is compatible with R22 refrigerant. Please contact us if you need a condensing unit for other refrigerants.

Product Features

Type			JZBS
			03LB	03LB	04LB	05LB	06LB	09LB
Compressor type			2CES-3	4FES-3	4EES-4	4DES-5	4CES-6	4TES-9
Storage temperature( ℃)			-20～-15 ℃
Refrigerant			R22
Power supply			380V/3P/50Hz
Cooling capacity and power	Evaporation --20℃	Cooling capacity(KW)	5.31	5.55	7.1	8.54	10.61	13.39
	Evaporation --20℃	Power(KW)	2.7	2.81	3.57	4.28	5.28	6.43
	Evaporation --23℃	Cooling capacity(KW)	4.56	4.74	6.07	7.32	9.13	11.39
	Evaporation --23℃	Power(KW)	2.52	2.61	3.31	3.99	4.94	5.96
	Evaporation -25℃	Cooling capacity(KW)	4.11	4.24	5.45	6.57	8.22	10.17
	Evaporation -25℃	Power(KW)	2.4	2.47	3.13	3.78	4.7	5.63
Nominal cooling water flow (m3/h)			1.6	1.8	2.2	2.6	3	4
Port	inhale port(mm)		φ22	φ22	φ28	φ28	φ28	φ35
	Liquid supply port(mm)		φ12	φ12	φ12	φ12	φ12	φ16
	Cooling water port(inch)		1-1/4＂	1-1/4＂	1-1/4＂	1-1/2＂	1-1/2＂	1-1/2＂
Boundary dimensions		A (mm)	745	745	745	935	935	1138
		B (mm)	350	290	290	370	370	380
		C (mm)	555	610	610	670	670	715
Installation dimension (a×b)(mm)			510×290	510×290	510×290	600×320	600×320	710×320

Unit design condition: evaporation temperature -23℃, environment temperature 35℃, inhale overheat 10℃

Type					JZBS
					12LB	14LB	18LB	23LB	28LB	34LB	44LB
Compressor type					4PES-12	4NES-14	4HE-18	4GE-23	6HE-28	6GE-34	6FE-44
Cooling capacity and power	Evaporation --20℃			Cooling capacity(KW)	15.1	18	24	28.7	36.8	42.5	51.5
	Evaporation --20℃			Power(KW)	7.11	8.59	11.39	13.74	17.43	20.3	24.6
	Evaporation -23℃			Cooling capacity(KW)	12.77	15.28	20.6	24.7	31.6	36.5	44.3
	Evaporation -23℃			Power(KW)	6.56	7.94	10.62	12.86	16.29	18.95	23.1
	Evaporation -25℃			Cooling capacity(KW)	11.35	13.62	18.43	22.3	28.4	32.8	39.9
	Evaporation -25℃			Power(KW)	6.18	7.5	10.1	12.27	15.51	18.05	22.1
Storage temperature( ℃)					-20～-15 ℃
Refrigerant					R22
Power supply					380V/3P/50Hz
Nominal cooling water flow (m3/h)					4.6	5.4	6.8	8	10	12	14.5
Port		inhale port/(mm)			φ35	φ35	φ42	φ54	φ54	φ54	φ54
		Liquid supply port(mm)			φ16	φ16	φ22	φ22	φ22	φ22	φ28
		Cooling water port(mm)			1-1/2＂	1-1/2＂	2＂	2＂	2＂	2＂	2-1/2＂
Boundary dimensions			A (mm)		1255	1255	1295	1295	1295	1295	1650
			B (mm)		415	415	585	565	595	595	600
			C (mm)		715	715	835	840	830	830	830
Installation dimension (A×B)(mm)					800×320	800×320	850×390	850×390	850×390	850×390	1200×390

Unit design condition: evaporation temperature -23℃, environment temperature 35℃, inhale overheat 10℃. Cylinder head fan and CIC spray system must be added if evaporation temperature is lower than -25℃.

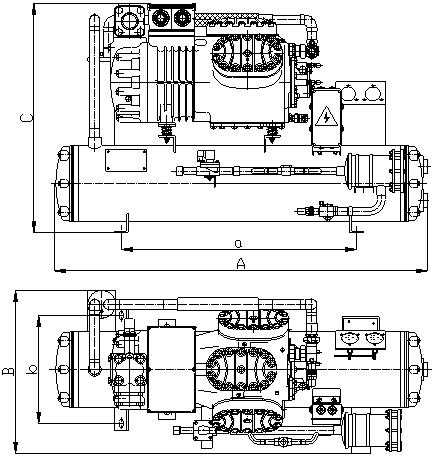

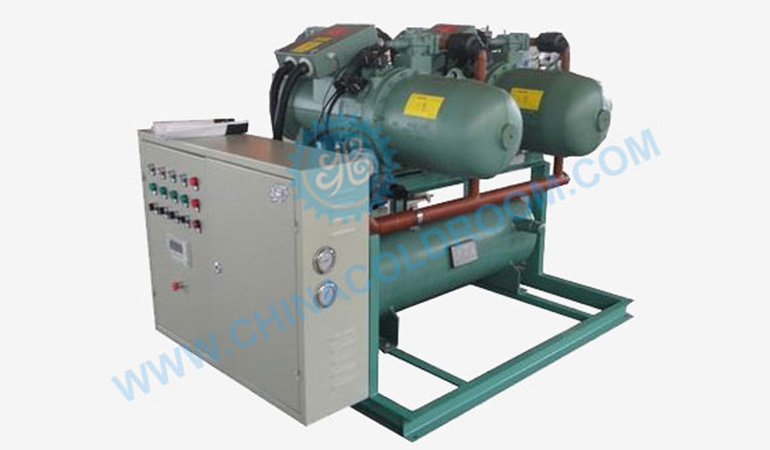

Figures of water cooling units:

Bitzer Water-Cooled Low Temperature Piston Condensing Unit (-20~-15℃)
