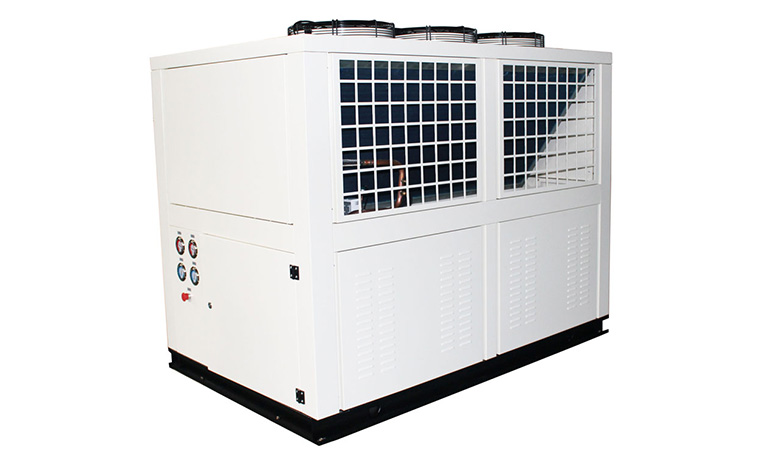

Box Type Air-cooled Chiller

Product Description

Our Box Type Air-Cooled Chiller provides an answer to all your “chill” problems. Whether it is a storage room or your concrete, this chiller cools down the temperature of required things like food or other materials. With its safety devices, the high and low voltage protection, over current protection, and electronic time-delay protection, it displays an outstanding example of efficiency. It also makes sure that power is consumed in a way to avoid over-billing.

Key Features:

● High quality compressor rack.

● Hermetic Scroll compressor.

● Efficient tubular DX heat exchanger.

● Axial fan flow.

● Efficient heat exchange.

● Stable operation.

● Less noise.

● Enhanced performance

● Chic yet industrial appearance.

● Wide temperature spectrum.

● Ultimate power saver

● Easy to connect and control all the components.

● Compact design and dimensions.

● Power supply: 380V/3PH/50Hz

Applications:

Our Box Type Air-Cooled Chiller has vast range of applications in several sectors it covers wide range of activities from food to plastics it ensures that your requirements are met by it.

● Pharmaceuticals

● Laboratories

● Moldings

● Cold Storage

● Concrete Cooling

● Portable Water

● Chemical Industries

● Poultry and food processing

● Beverage industry

Standard Box Type Air-Cooled Chillers as below:

● 7⁰C Box Type Air-Cooled Chiller

● -5⁰C Box Type Air-Cooled Chiller

● -15⁰C Box Type Air-Cooled Chiller

We invariably assemble and examine all Box Type Air-Cooled Chiller components discreetly to sustain premium quality insignia.

Main Components:

● Compressor

● Condenser

● Reservoir

● Chilled Water inlet/outlet pipe.

● Terminal Box

● Sight Glass

● Pressure gauge

● Pressure controller

● Safety Devices

Note:

In addition to the above-mentioned specifications and requirements, our company is capable of providing customized products in order to satisfy customer needs.

Product Features

-5⁰C Box Type Air-Cooled Chiller

Box Type Air-cooled Chillers ( -5℃ )
Model		ZWAD	3A	5A	8A	10A	12A	15A	2-20A	2-25A	2-30A	2-40A	2-50A	4-60A
Cooling Capacity		kW	4.5	7.5	12.1	16.8	19.2	23.6	33.6	38.4	47.2	64.2	78.0	99.6
		104kcal/h	0.4	0.6	1.0	1.4	1.7	2.0	2.9	3.3	4.1	5.5	6.7	8.6
		RT	1.3	2.1	3.4	4.8	5.5	6.7	9.6	10.9	13.4	18.3	22.2	28.3
Power Input		kW	2.7	4.3	6.4	8.7	9.6	12.5	16.4	18.2	24.8	32.4	39.5	48.3
Current Input		A	5.3	8.7	12.7	16.5	17.7	25.1	31.8	34.3	50.7	57.8	72.4	87.3
Power Supply			380V-3PH-50Hz
Safety Devices			High and low voltage protection, overcurrent protection, antifreeze protection, electronic time-delay protection
Compressor	Model Type		Hermetic Scroll Compressor
	QTY		1	1	1	1	1	1	2	2	2	2	2	4
	Power Input	kW	2.13	3.47	5.46	7.08	8.00	10.90	14.16	16.00	21.80	28.40	35.50	42.40
	Rated Current	A	4.02	7.15	10.58	13.31	14.54	21.93	26.62	29.08	43.86	49.66	64.26	75.52
Chilled Water	Form		High efficiency tubular DX heat exchanger
	Pipe diameter	DN	25	25	25	25	32	32	40	40	50	50	50	65
	Water flow	L/min	13	22	35	48	55	68	96	110	135	184	224	286
Condenser Fan	Form		High efficiency and low noise axial flow fan
	Power Input	kW	0.19	0.42	0.38	0.84	0.84	0.84	1.14	1.14	1.50	2.52	2.52	3.65
	Current Input	A	0.5	0.85	1.0	1.7	1.7	1.7	3.0	3.0	3.8	5.1	5.1	7.4
Chilled Water Pump	Form		High efficiency and low noise centrifugal pump
	Power Input	kW	0.37	0.37	0.55	0.75	0.75	0.75	1.10	1.10	1.50	1.50	1.50	2.20
	Lift	m	16	21	22	19	17	25	24	23	22	21	19	22
Refrigerant	Model		R22
Water Tank Volume		L	70	75	100	115	145	250	270	320	360	400	400	550
Size	Length	mm	1060	1060	1520	1620	1720	1810	2020	2270	2470	2670	2850	2950
	Width	mm	740	740	850	850	850	930	1010	1150	1150	1240	1350	1400
	Height	mm	1340	1450	1550	1600	1600	1730	1930	1930	2080	2220	2350	2450
Weight		Kg	220	236	320	372	435	610	750	850	950	1050	1150	1300

Remark:

1. Designed condition: Chilled water inlet/outlet temp. 0 ℃/-5 ℃; Ambient temp. 35 ℃. Frozen side must use antifreeze, it is recommended to use 25% ethylene glycol solution.

2. Temperature conditions: Chilled water outlet temp. range of -8 ℃ ~ 10 ℃.

3. The design pressure of evaporator water side is 1.0MPa.

4. In the nominal working condition, the fouling coefficient of evaporator water side is 0.018m2·℃/kW.

5. In addition to the above specifications and requirements, the company can provide non-standard products according to customer requirements.

7⁰C Box Type Air-Cooled Chiller

Box Type Air-cooled Chillers ( 7℃ )
Model		ZWAG	3A	5A	8A	10A	12A	15A	2-20A	2-25A	2-30A	2-40A	2-50A	4-60A
Cooling Capacity		kW	7.2	12.5	20.0	26.7	30.6	39.2	53.4	61.2	78.4	102.2	126.8	157.8
		104kcal/h	0.6	1.1	1.7	2.3	2.6	3.4	4.6	5.3	6.7	8.8	10.9	13.6
		RT	2.0	3.6	5.7	7.6	8.7	11.1	15.2	17.4	22.3	29.1	36.1	44.9
Power Input		kW	3.0	4.9	7.2	9.7	11.0	14.3	18.8	20.8	28.4	33.7	40.5	51.5
Current Input		A	5.8	9.6	14.1	17.8	20.0	27.8	35.2	38.3	56.0	60.0	74.6	93.0
Power Supply			380V-3PH-50Hz
Safety Devices			High and low voltage protection, overcurrent protection, antifreeze protection, electronic time-delay protection
Compressor	Model Type		Hermetic Scroll Compressor
	QTY		1	1	1	1	1	1	2	2	2	2	2	4
	Power Input	kW	2.46	3.96	6.11	8.09	9.10	12.35	16.18	18.20	24.70	29.00	35.80	43.80
	Rated Current	A	4.53	7.69	11.55	14.59	16.13	23.86	29.18	32.26	47.72	50.52	65.14	77.60
Chilled Water	Form		High efficiency tubular DX or plate heat exchanger
	Pipe diameter	DN	25	25	32	32	32	40	40	50	50	65	65	65
	Water flow	L/min	21	36	57	77	88	112	153	175	225	293	363	452
Condenser Fan	Form		High efficiency and low noise axial flow fan
	Power Input	kW	0.19	0.42	0.38	0.84	0.84	0.84	1.14	1.14	1.50	2.52	2.52	3.65
	Current Input	A	0.5	0.85	1.0	1.7	1.7	1.7	3.0	3.0	3.8	5.1	5.1	7.4
Chilled Water Pump	Form		High efficiency and low noise centrifugal pump
	Power Input	kW	0.37	0.55	0.75	0.75	1.10	1.10	1.50	1.50	2.20	2.20	2.20	4.00
	Lift	m	16	21	22	19	17	25	24	23	22	21	19	22
Refrigerant	Model		R22
Water Tank Volume		L	70	75	100	115	145	250	270	320	360	400	400	550
Size	Length	mm	1060	1060	1520	1620	1720	1810	2020	2270	2470	2670	2850	2950
	Width	mm	740	740	850	850	850	930	1010	1150	1150	1240	1350	1400
	Height	mm	1340	1450	1550	1600	1600	1730	1930	1930	2080	2220	2350	2450
Weight		Kg	220	236	320	372	435	610	750	850	950	1050	1150	1300

Remark:

1. Designed condition: Chilled water inlet/outlet temp.12 ℃/7 ℃, Ambient temp. 35 ℃.

2. Temperature conditions: Chilled water outlet temperature range of 5 ℃ ~ 25 ℃.

3. The design pressure of evaporator water side is 1.0MPa.

4. In the nominal working condition, the fouling coefficient of evaporator water side is 0.018m2·℃/kW.

5. In addition to the above specifications and requirements, the company can provide non-standard products according to customer requirements.

-15⁰C Box Type Air-Cooled Chiller

Box Type Air-cooled Chiller ( -15℃ )
Model		ZWAD	3A	5A	8A	10A	13A	15A	2-20A	2-25A	2-30A
Cooling Capacity		kW	2.9	5.0	6.9	10.0	13.1	15.3	20.0	26.2	30.6
		104kcal/h	0.2	0.4	0.6	0.9	1.1	1.3	1.7	2.3	2.6
		RT	0.8	1.4	2.0	2.8	3.7	4.4	5.7	7.5	8.7
Power Input		kW	3.4	5.5	8.0	10.5	12.0	14.2	20.1	23.4	27.9
Current Input		A	6.2	9.0	14.9	14.4	22.1	27.6	27.7	43.8	54.8
Power Supply			380V-3PH-50Hz
Safety Devices			High and low voltage protection, overcurrent protection, antifreeze protection, electronic time-delay protection
Compressor	Model Type		Hermetic Scroll Compressor
	QTY		1	1	1	1	1	1	2	2	2
	Power Input	kW	2.83	4.74	7.21	9.10	10.60	12.65	18.20	21.20	25.30
	Rated Current	A	4.93	7.39	13.19	11.60	19.30	24.37	23.20	38.60	48.74
Chilled Water	Form		High efficiency tubular DX heat exchanger
	Pipe diameter	DN	20	20	25	25	25	32	32	32	40
	Water flow	L/min	8	14	20	29	38	44	57	75	88
Condenser Fan	Form		High efficiency and low noise axial flow fan
	Power Input	kW	0.19	0.42	0.38	0.84	0.84	0.84	1.14	1.14	1.50
	Current Input	A	0.5	0.85	1.0	1.7	1.7	1.7	3.0	3.0	3.8
Chilled Water Pump	Form		High efficiency and low noise centrifugal pump
	Power Input	kW	0.37	0.37	0.37	0.55	0.55	0.75	0.75	1.10	1.10
	Lift	m	16	21	22	19	17	25	24	23	22
Refrigerant	Model		R404a
Water Tank Volume		L	70	75	100	115	145	250	270	320	360
Size	Length	mm	1060	1060	1520	1620	1720	1810	2020	2270	2470
	Width	mm	740	740	850	850	850	930	1010	1150	1150
	Height	mm	1340	1450	1550	1600	1600	1730	1930	1930	2080
Weight		Kg	220	236	320	372	435	610	750	850	950

Remark:

1. Designed condition: Chilled water inlet/outlet temp. -10 ℃/-15 ℃; Ambient temp. 35 ℃. Frozen side must use antifreeze, it is recommended to use 40% ethylene glycol solution.

2. Temperature conditions: Chilled water outlet temp. range of -17 ℃ ~ 0 ℃.

3. The design pressure of evaporator water side is 1.0MPa.

4. In the nominal working condition, the fouling coefficient of evaporator water side is 0.018m2·℃/kW.

5. In addition to the above specifications and requirements, the company can provide non-standard products according to customer requirements.
