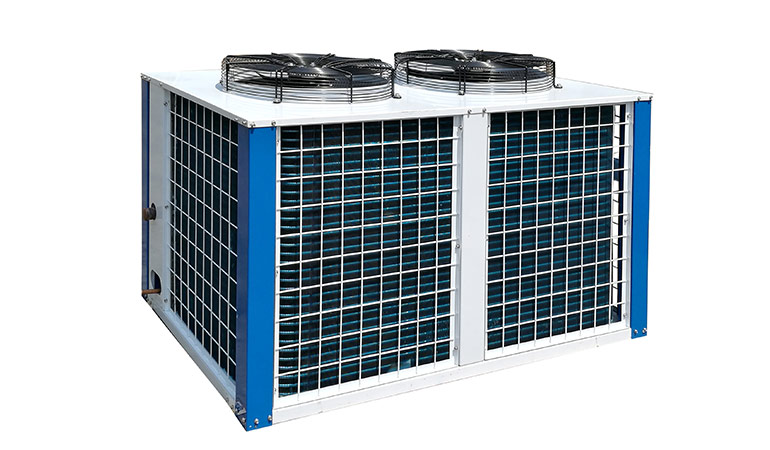

Copeland Air-cooled Hermetic Compressor Unit (-5～5 ℃, 5～15 ℃)

Copeland Air-Cooled Hermetic Compressor Unit works effectively with a multi-step check that can be very helpful in saving power. It is presented with a breakdown caution and inquiry function empowering users to have a check on its performance. In extension to this, it has an edge over many other compressors as it has controllable fan activity with inhaling overheat of 10 ⁰C. Furthermore, it guarantees ample cooling potential with storage temperature moving between -5~5 ⁰C.

We invariably assemble and examine all Copeland Air-Cooled Hermetic Compressor Unit components discreetly to sustain OEM-QUALITY insignia.

Features:

· It comes with integrated electrical parts given main electrical appliance, main control panel, and cold room temperature control panel.

· Automated compressor with updated main control panel that can turn on and off based on the pressor.

· Not only switching is automated but also compressor regulation is for cold room temperature and defrosting.

· It is guarded with multi-level protection for many unfortunate incidents like phase loss, overcurrent, exhaust temperature, compressor module, pressure adjustments.

· Failure alarm notifies the users if any equipment is malfunctioned.

· Easy to operate and monitor

· Storage Temperature: 5～15 ℃, -5～5 ℃

· Evaporation temperature at 5～15 ℃:5℃

· Environment temperature at 5～15 ℃: 35℃,

· Inhaling overheat at 5～15 ℃: 10℃

· Evaporation temperature at -5～5 ℃:

· Evaporation temperature at -5～5 ℃: -7℃

· Environment temperature at 5～5 ℃: 35℃,

· Inhaling overheat at -5～5 ℃: 10℃

· Power supply: 380V/3P/50Hz

Main Components:

· Compressor

· B Type Unit (Top Exhaust)

· Condenser

· Reservoir

· Oil Separator

· Filter

· Magnetic valve

· Air Control valve (2-5 HP)

· Sight Glass

· Pressure gauge

· Pressure controller

This Copeland Air-Cooled Hermetic Compressor Unit with all measurements and parts is compatible with R22 refrigerant. Please contact us if you need a compressor unit for other refrigerants.

Unit design condition: evaporation temperature 5℃, environment temperature 35℃, inhaling overheat 10℃

Unit design condition: evaporation temperature 5℃, environment temperature 35℃, inhaling overheat 10℃

Unit design condition: evaporation temperature -7℃,environment temperature 35℃,inhaling overheat 10℃

Unit design condition: evaporation temperature -7℃, environment temperature 35℃, inhaling overheat 10℃

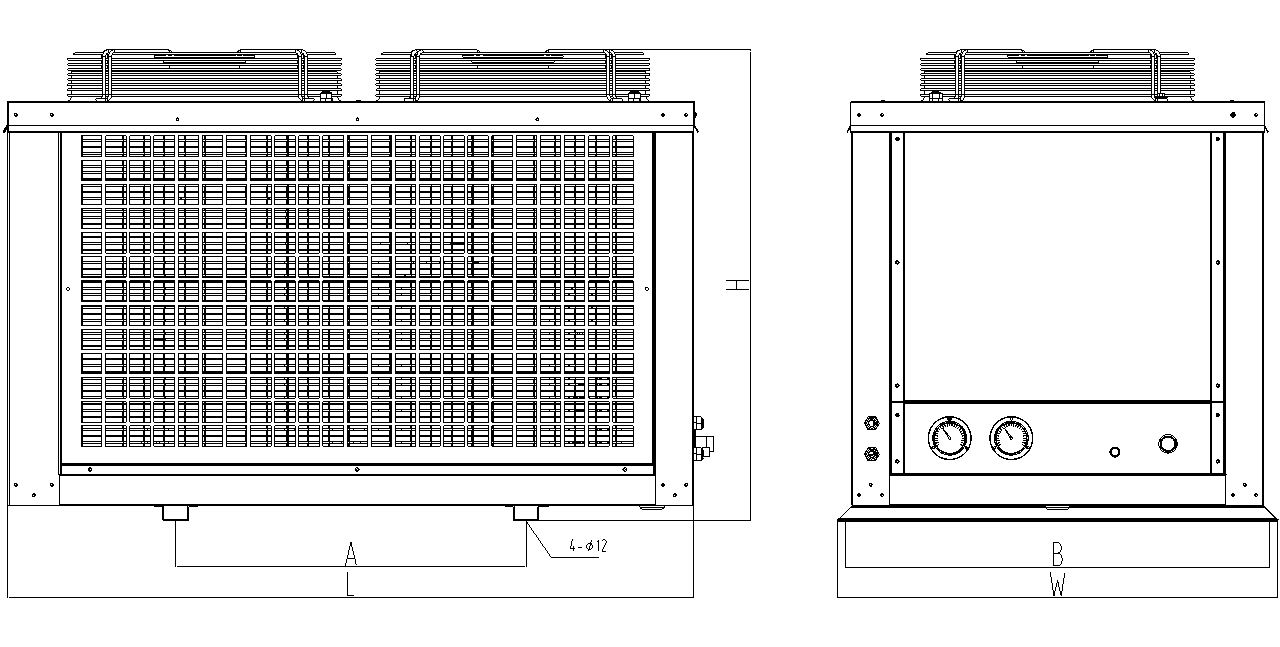

Installation dimensions:
