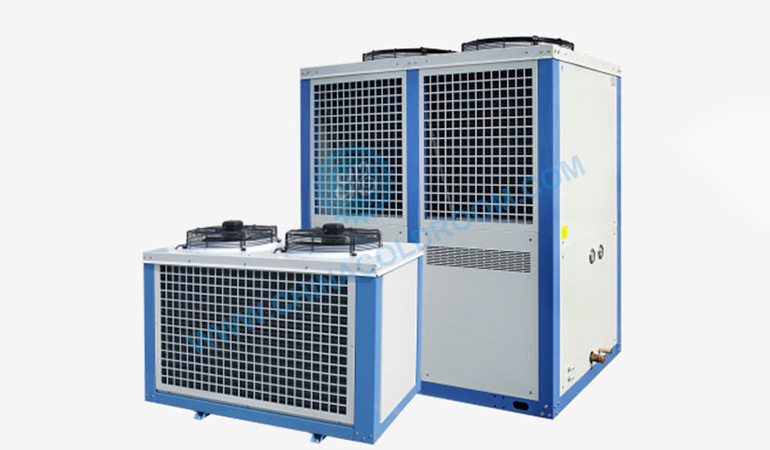

Air-Cooled GEA Bock Low Temperature Compressor Unit (-10~5℃)

With all exceptional features, this Air-Cooled GEA Bock Low-Temperature Compressor Unit comes with controllable fans, inquiry function, and failure alarm system. As it works at low temperatures, so it ensures protection in extreme conditions like exhaust temperature, over current, phase loss, and sudden compressor starting to maintain workflow. It comes with optional integrated electrical parts to meet customers’ demands.

Moreover, we always manufacture and test all Air-Cooled GEA Bock Low Temperature Compressor Unit parts carefully to maintain OEM-QUALITY standards.

Features:

· Storage temperature: -10～5℃

· Power supply: 380V/3P/50Hz

· Evaporation temperature: -10℃

· Environment temperature: 35℃

· Inhale overheat: 10℃

· Control panel for icy room temperature and standard control panel (optional).

· Automatic ON and OFF function.

· Automatic control function for defrosting.

· Multi-protection guaranteed (high low-pressure protection, oil presser protection, compressor module protection, temperature and over current protection).

· Fans speed is controllable according to the changing temperature settings.

· Buzzer alarm in case of any failure while working.

· Easy to install and operate the control panel.

· Control panel displays alarm function, working status, and all temperature settings.

Main Components:

· Semi-hermetic Compressor

· Crankcase heater

· Anti-vibration Pipe

· Condenser

· Liquid Accumulator

· Filter

· Pressure Controller

· High Pressure Gauge

· Low Pressure Gauge

· Terminal Box

· Sight Glasses

This Air-Cooled GEA Bock Low Temperature Compressor Unit with all measurements and parts is compatible with R22 refrigerant. Please contact us if you need a compressor unit for other refrigerants.

Unit design condition: evaporation temperature -10℃,environment temperature 35℃,inhale overheat 10℃

Unit design condition: evaporation temperature -7℃,environment temperature 35℃,inhale overheat 10℃

Installation dimensions:

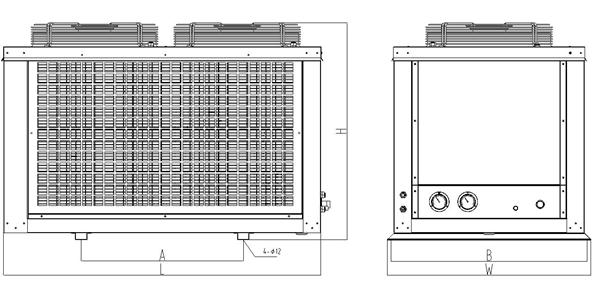

XJB03MB(Y)-XJB07MB(Y), XJB03LB(Y)-XJB06LB(Y):

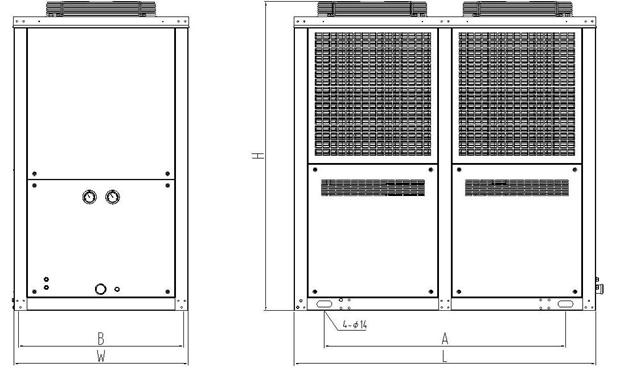

XJB10MB(Y)-XJB50MB(Y)、XJB08LB(Y)-XJB40LB(Y):
